Svingbreddningskit

SINGLE-SIDED SWINGARM FOR SOFTAIL

This Single Sided swingarm is constructed from beefy, heavy gauge steel tubing and allows you to fit an up to 250 series rear tire on an 8.00 x 18 or 9.00 x 18 wheel. This swing arm fits a stock style Evolution Softail or Twin Cam Softail frame in conjunction with a 25mm primary offset kit. For Evolution models you can use a 25mm primary offset ring with crankshaft extension with nut and 25mm offset transmission mounting plate or ZPN700889 offset kit. Twin Cam Softails through 2006 need ZPN700889 primary offset kit that features an extended transmission main drive shaft and 25mm extended main drive gear. 2007-up 6 Speed Twin Cam Softails use our latest ZPN701950 offset kit. The swingarm kit includes a polished rear disc brake rotor, polished 4 piston PM brake caliper with bracket, polished 20mm wide rear pulley and the stock type spherical swingarm bearings. The included trick caliper mounting bracket allows you to fit the caliper in down or upright position without the need of a separate brake torsion arm. The polished 20mm rear pulley features hard anodized and Teflon coated teeth for X-tra long running time. Due to the variety of applications the swingarm the primary offset kit and other required parts must be ordered separately. Kit needs to be used with 2007 type 20mm rear belt. Note: All parts in the offset kits are separately available. Note: Primary offset kit for 2012-2013 models also fits earlier models that are equipped with a Screamin' Eagle compensator OEM 40274-08 or 40274-08A. These feature only 1 thrust washer between the sprocket and sprocket retainer. Kit for 2014 to present models also fits earlier models that are equipped with a Screamin' Eagle compensator OEM 36500034A, 40100061, 4220064A or 42200095A. These feature a thrust needle bearing and 2 washers between the sprocket and sprocket retainer.

Z701944

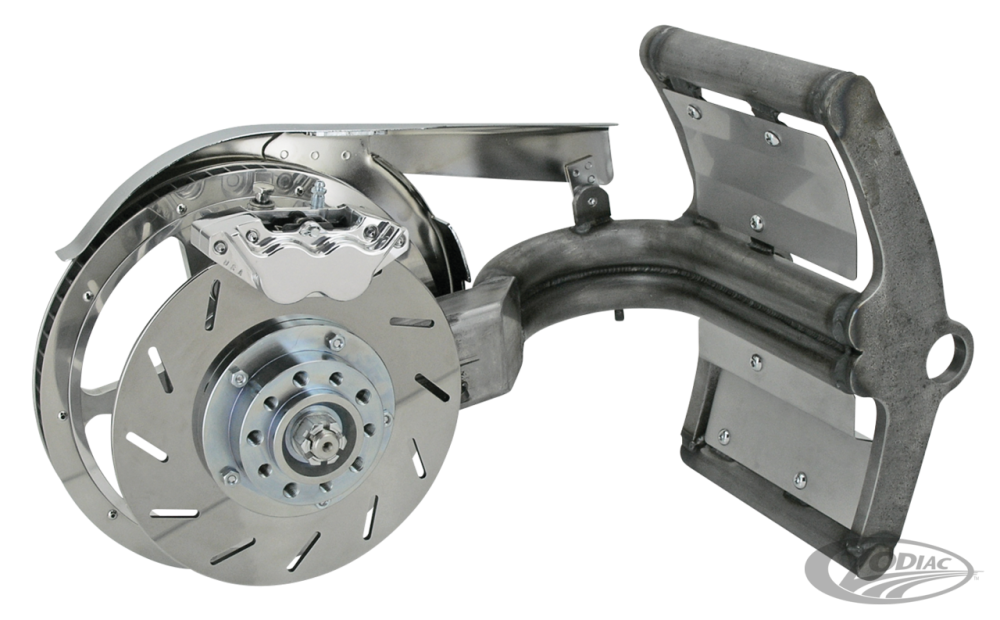

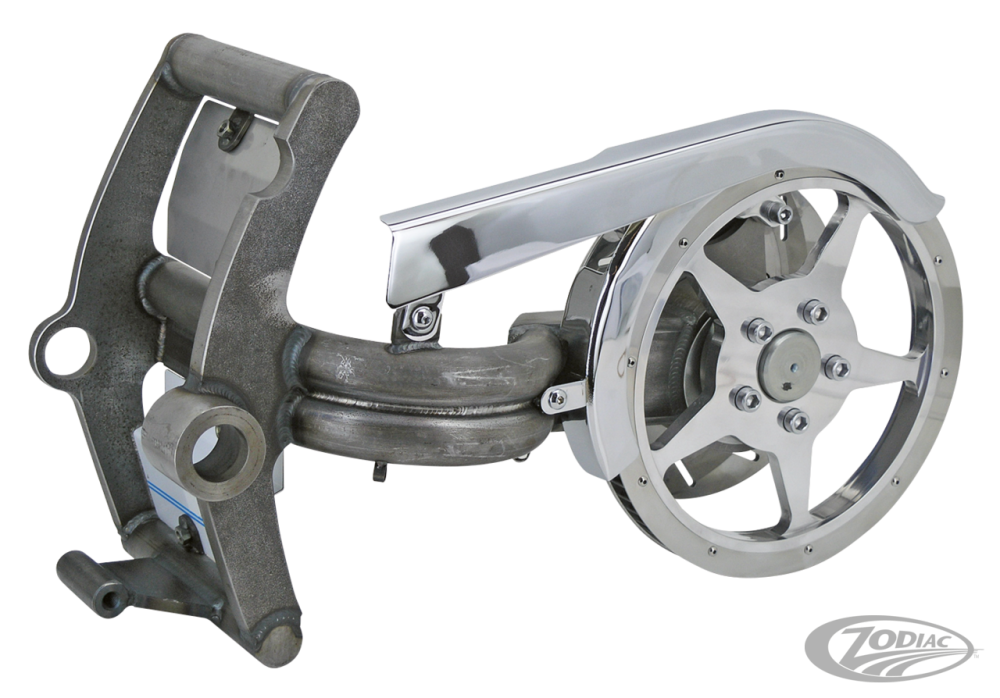

SINGLE-SIDED SWINGARM FOR SOFTAIL

This Single Sided swingarm is constructed from beefy, heavy gauge steel tubing and allows you to fit an up to 250 series rear tire on an 8.00 x 18 or 9.00 x 18 wheel. This swing arm fits a stock style Evolution Softail or Twin Cam Softail frame in conjunction with a 25mm primary offset kit. For Evolution models you can use a 25mm primary offset ring with crankshaft extension with nut and 25mm offset transmission mounting plate or ZPN700889 offset kit. Twin Cam Softails through 2006 need ZPN700889 primary offset kit that features an extended transmission main drive shaft and 25mm extended main drive gear. 2007-up 6 Speed Twin Cam Softails use our latest ZPN701950 offset kit. The swingarm kit includes a polished rear disc brake rotor, polished 4 piston PM brake caliper with bracket, polished 20mm wide rear pulley and the stock type spherical swingarm bearings. The included trick caliper mounting bracket allows you to fit the caliper in down or upright position without the need of a separate brake torsion arm. The polished 20mm rear pulley features hard anodized and Teflon coated teeth for X-tra long running time. Due to the variety of applications the swingarm the primary offset kit and other required parts must be ordered separately. Kit needs to be used with 2007 type 20mm rear belt. Note: All parts in the offset kits are separately available. Note: Primary offset kit for 2012-2013 models also fits earlier models that are equipped with a Screamin' Eagle compensator OEM 40274-08 or 40274-08A. These feature only 1 thrust washer between the sprocket and sprocket retainer. Kit for 2014 to present models also fits earlier models that are equipped with a Screamin' Eagle compensator OEM 36500034A, 40100061, 4220064A or 42200095A. These feature a thrust needle bearing and 2 washers between the sprocket and sprocket retainer.

Z701945

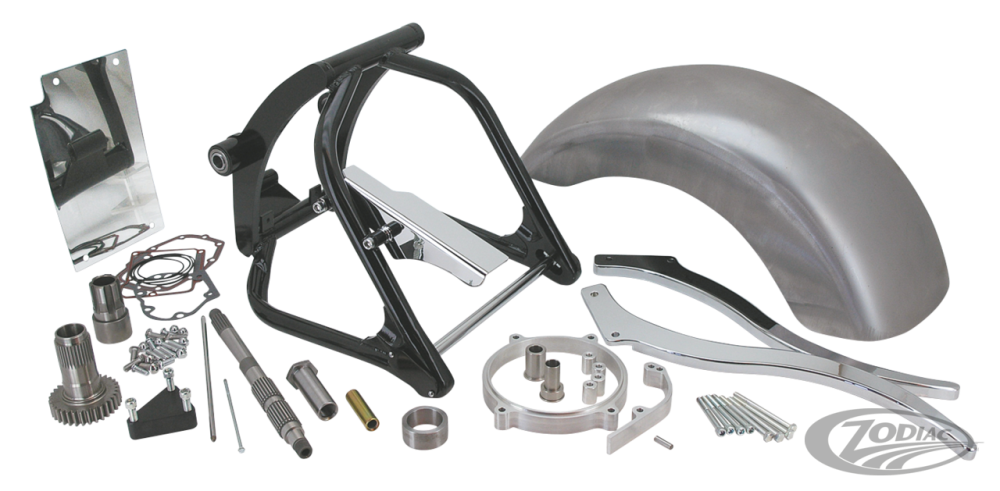

ZODIAC'S "DELUXE" 250 SWING ARM KIT FOR SOFTAIL

Z756027

ZODIAC'S "DELUXE" 250 SWING ARM KIT FOR SOFTAIL

Z756026

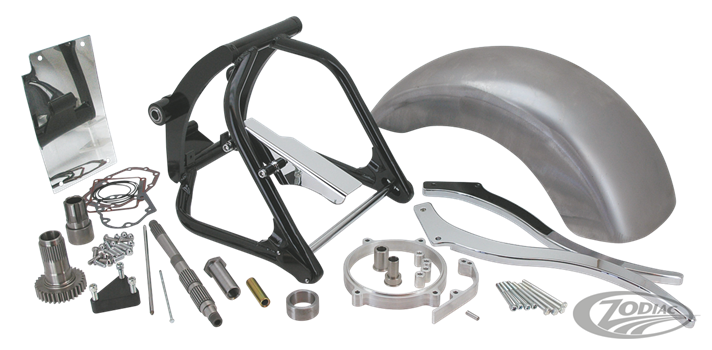

ZODIAC'S "DELUXE" 250 SWING ARM KIT FOR SOFTAIL

Z756025

"SUPER-ASS" SWINGARM KITS FOR 1991 THRU 1999 SOFTAILS AND ZODIAC WIDETAIL FRAMES

The Super-Ass swingarm kit is for those that want to convert their Softail or Wide-Tail Softail to accept Avon's 230 X 15 Super Wide rear tire. This tire measures 250mm wide if fitted on an 8" wide rim. Kit bolts straight into both the stock Softail frame as well as the Zodiac WideTail frame. You can still use the final belt drive when used in a WideTail frame, a stock Softail must be converted to final chain drive or the late 20mm wide belt. When you use this narrow belt or a chain in a Zodiac WideTail frame you can easily go up to a 250 series tire.The complete kit includes:•Fully TIG welded swingarm with stainless fender extension plate•Swingarm pivot•Rear wheel axle with chrome nuts•Crankshaft extension for 1986 thru 1999 models•Extended crankshaft nut for 1991 thru 1999 models•Primary spacer with O-ring and bolts•Longer inner primary mounting bolts•Primary gasket set•Transmission off-set plate•A complete new bracket and hardware kit for the 5th transmission mounting studKits can also be used for 1987 thru 1990 models if correct crankshaft extension, extended sprocket shaft nut and primary gaskets are used. Due to the wide variety of wheels,fenders, fender struts, and wheel spacers are not included,these can be found elsewhere in this catalog.

Z236443

TTS XL 240 CONVERSION KIT

04-21 XL

MH517768

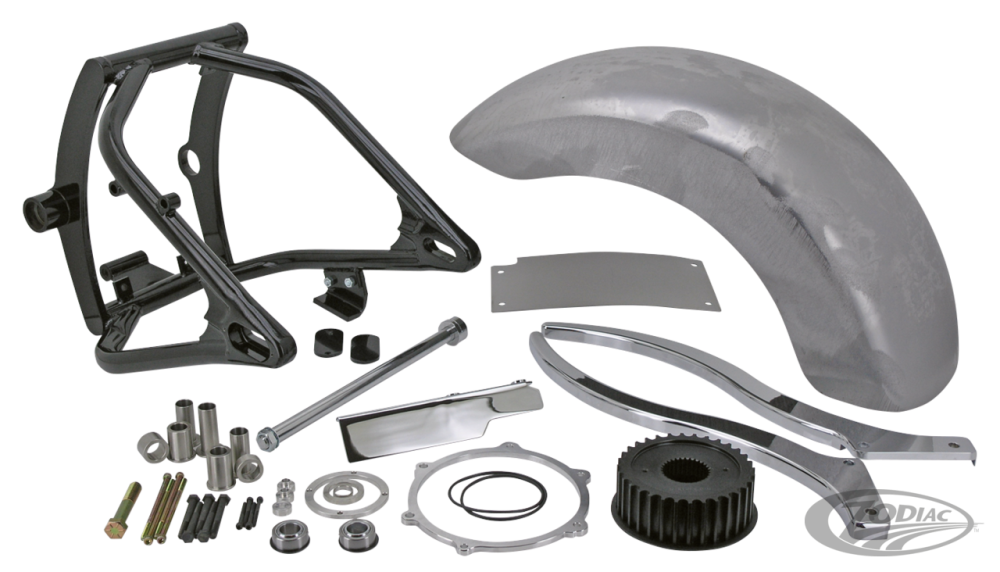

ZODIAC'S "RADIUM" 250 SWING ARM KIT FOR TWIN CAM SOFTAIL

Z756028

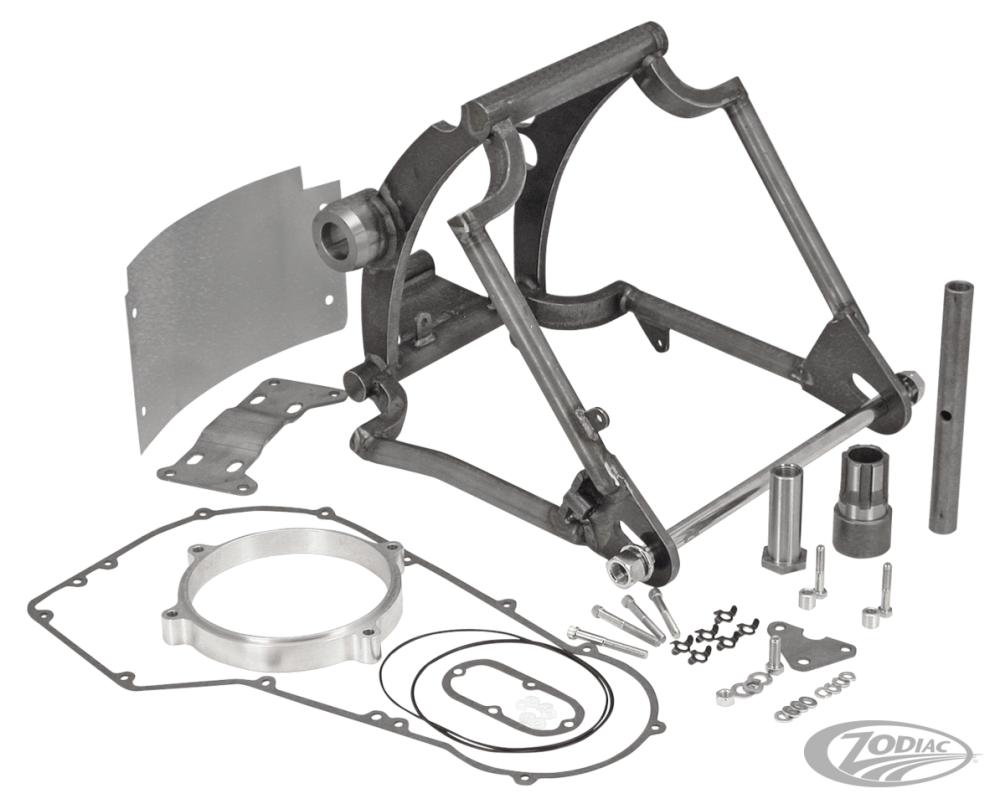

ZODIAC'S "SUPER-ASS" EVOLUTION SOFTAIL STYLE FRAME KIT

Super-Ass swingarm Zodiac & OEM FXST

Z236687
